UNI-1 and UNI-2 : How to check the software version of the indicator.

  • Updated

This procedure explains how to check the software version installed in the UNI-1 or UNI-2 indicator.

  1. Indicator UNI-1
  2. Indicator UNI-2

Indicator UNI-1

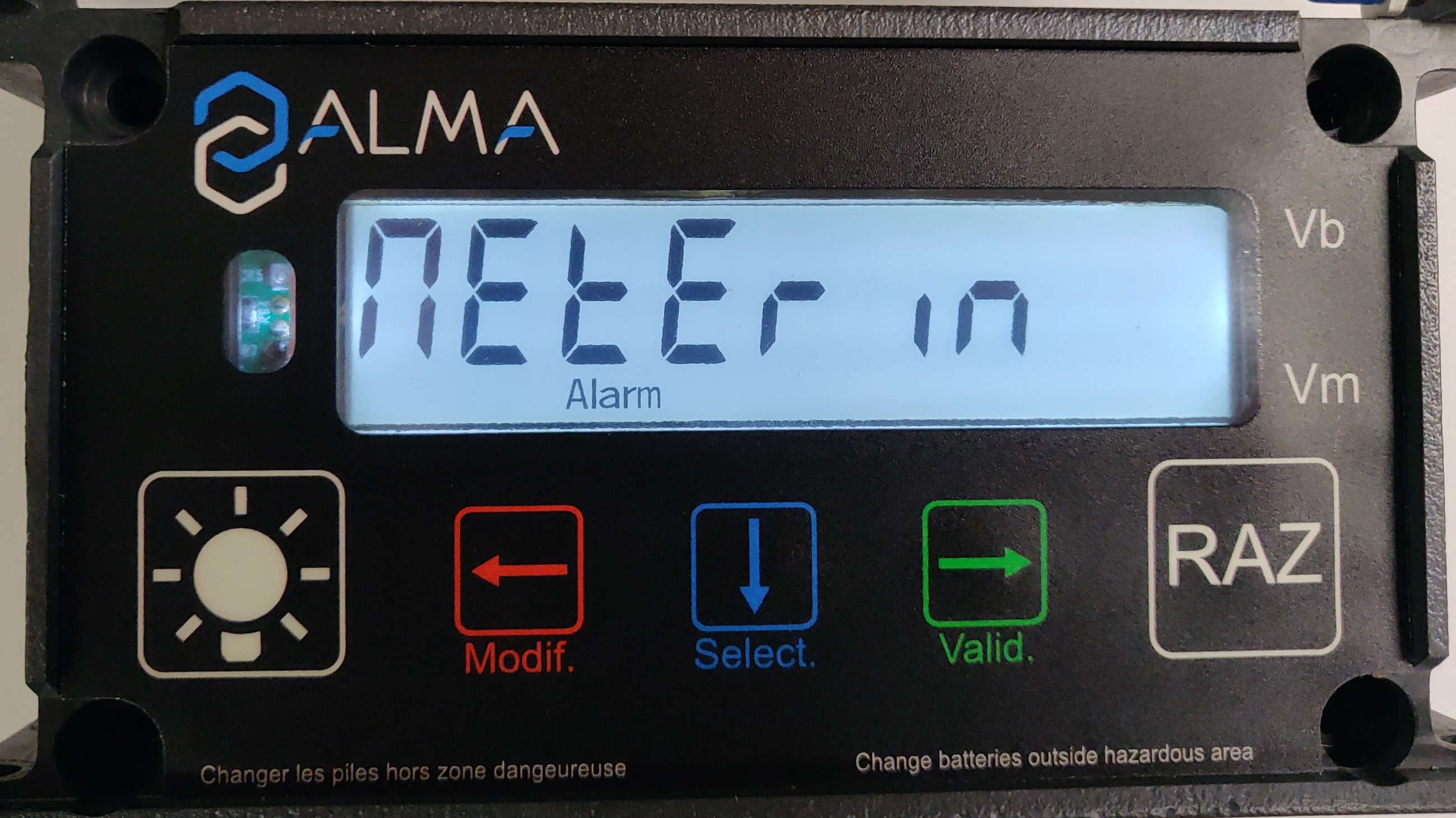

  • Press the red  button "MODIF" several times until the "METERING" menu is displayed.

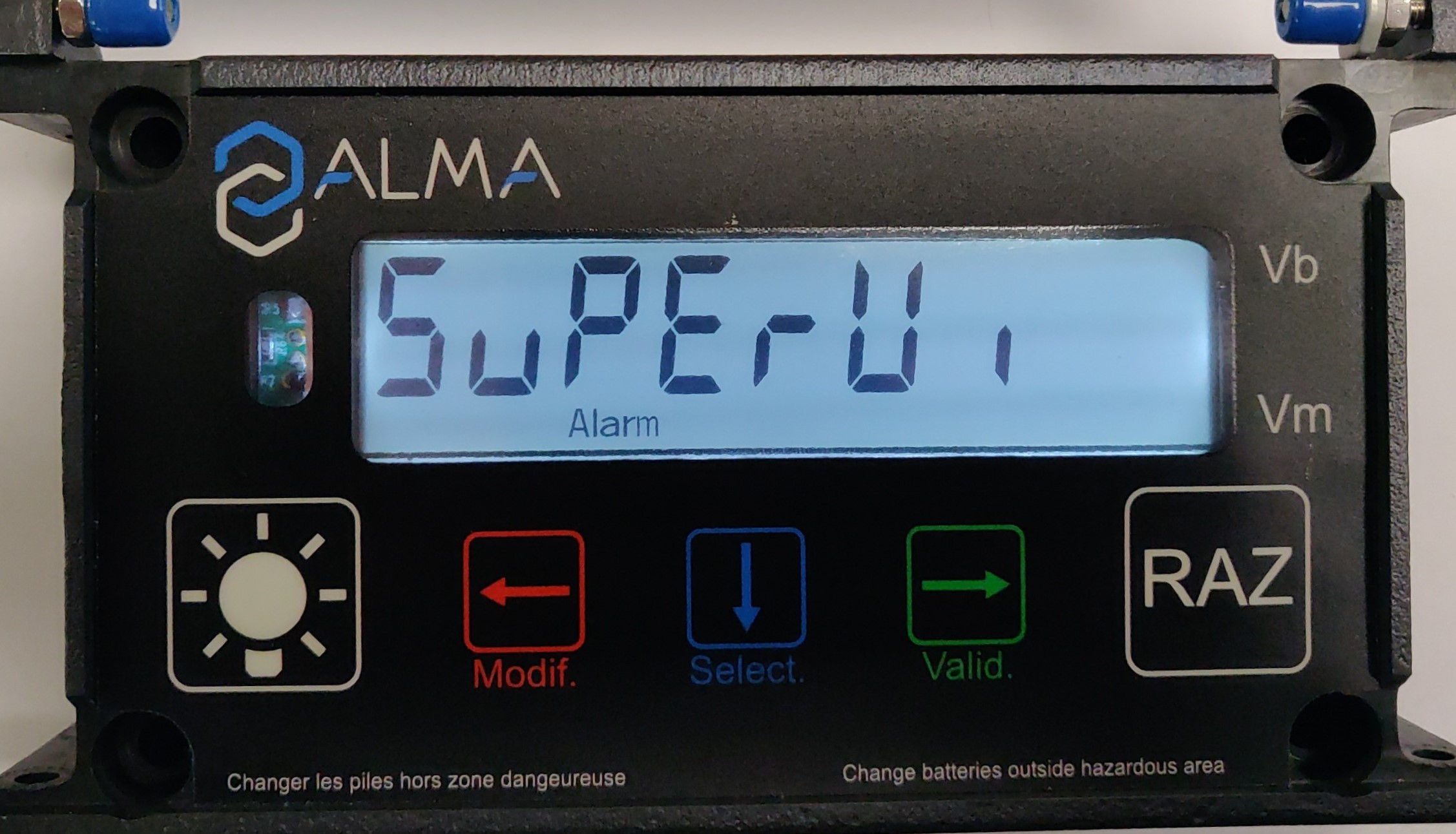

  • Press the blue button "SELECT" until the "SUPERVISOR" menu is displayed.





  • Press the green button "VALID" to enter in the menu.

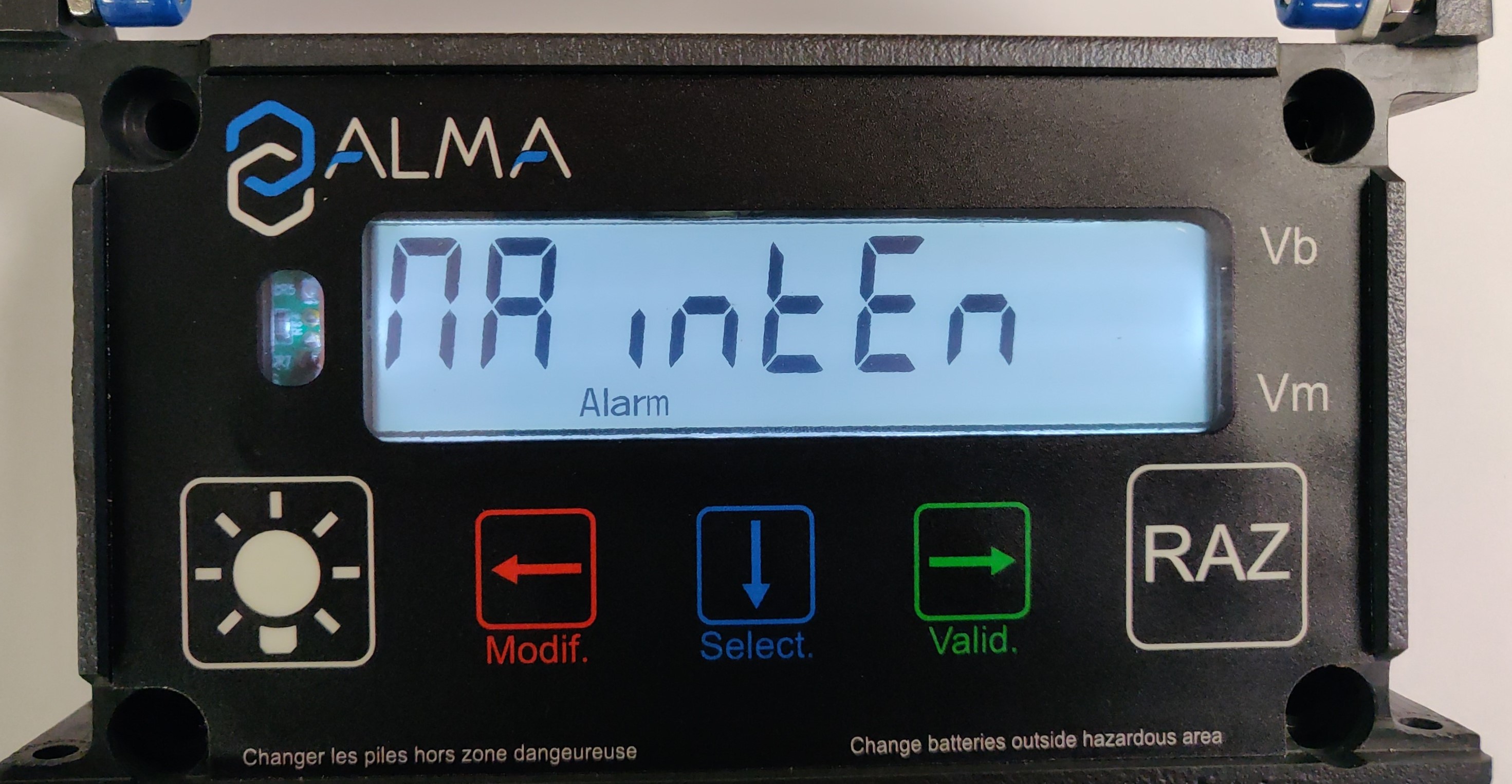

  • Press the blue button "SELECT" until the "MAINTENANCE" menu is displayed.





  • Press the green button "VALID" to enter in the menu.

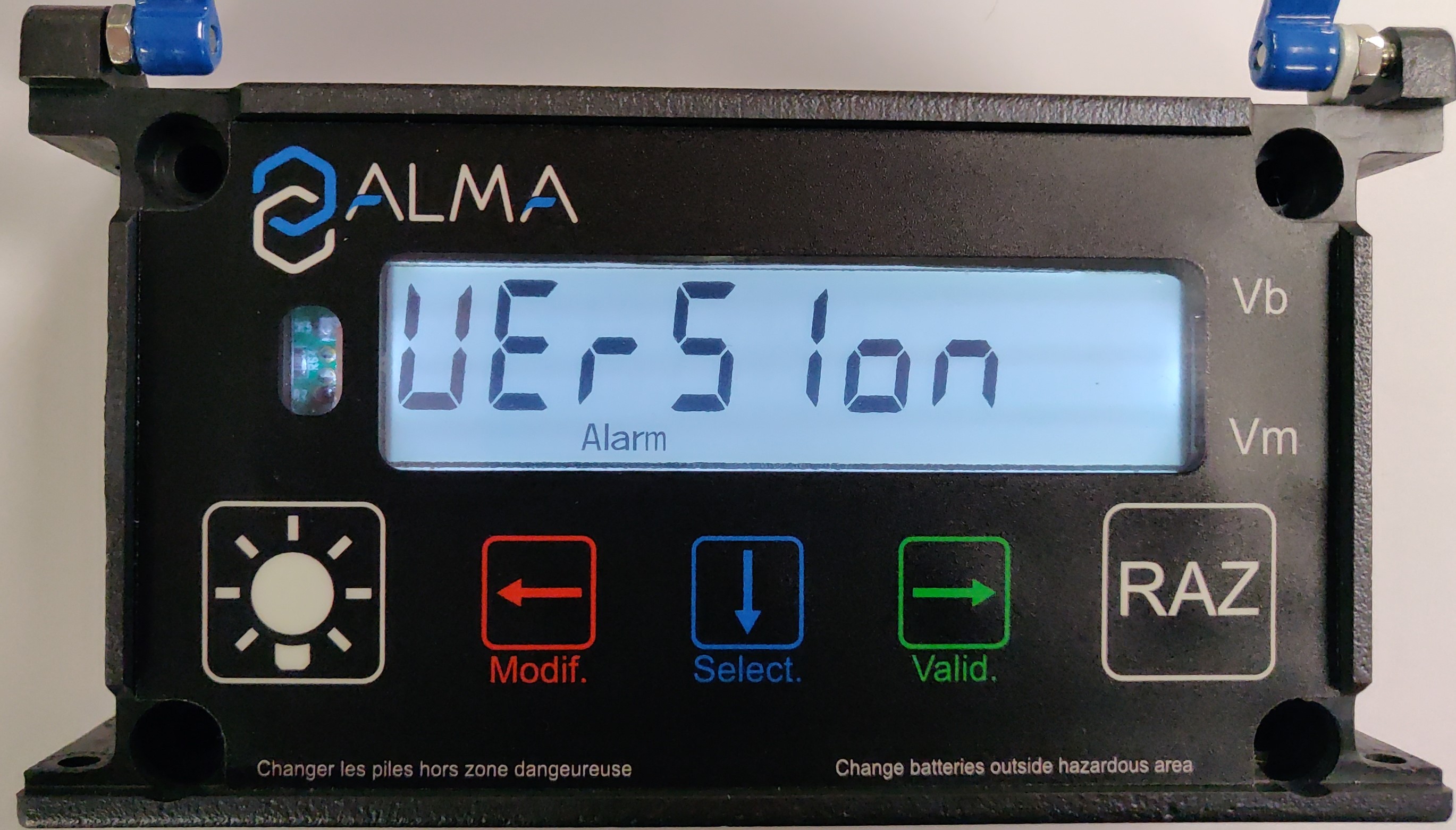

  • Press the blue button "SELECT" until the "VERSION" menu is displayed.





  • Press the green button "VALID" to enter in the menu.



  • The indicator alternately displays the software version, in this example the version is 434 V02.01.06

















Indicator UNI-2

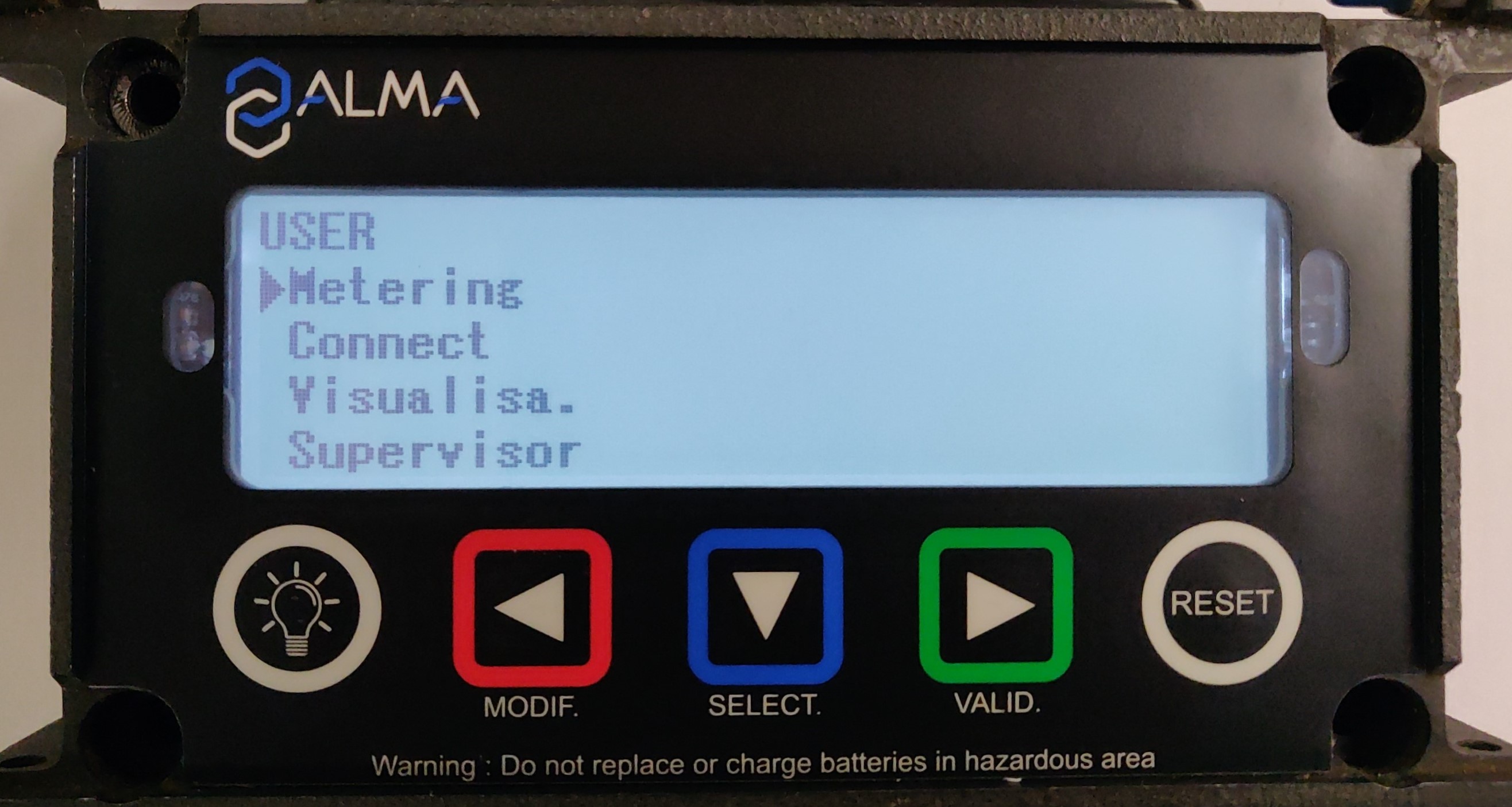

  • Press the red  button "MODIF" several times until the "USER" menu is displayed.





  • Press the blue button "SELECT" to select the "SUPERVISOR" menu.





  • Press the green button "VALID" to enter in the menu.



  • Press the blue button "SELECT" to select the "MAINTENANCE" menu.





  • Press the green button "VALID" to enter in the menu.



  • Press the blue button "SELECT" to select the "SOFT INFO" menu.





  • Press the green button "VALID" to enter in the menu.



  • Press the blue button "SELECT" to select the "CUSTOM SOFT" sub menu.



  • In this exemple the software version is 449 V1.01.06_AQ.
