This procedure explains how to check the software version installed in the Microcompt indicator.
Startup display
When you power on the Microcompt, it will display several pages before accessing the menus.
These pages may differ; however, the Microcompt application version will always be displayed.
In the latest versions, the following are displayed in order :

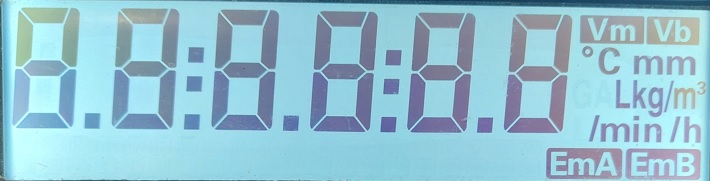

- A display test

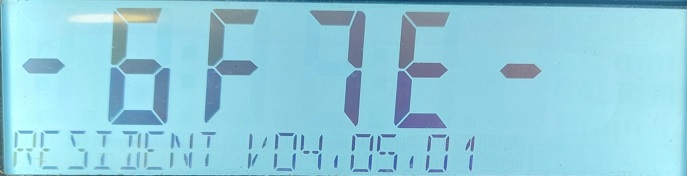

- The resident's version with his checksum
In this example, we must understand that we are resident V4.05.01 with a checksum of 6F7E

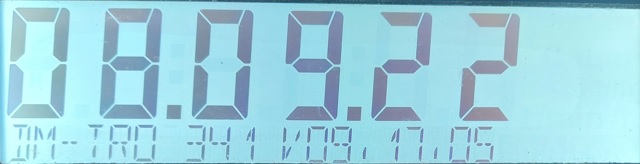

- The version of the application we are interested in with its date
In this example, we are on software number 341 in version 9.17.05 dated September 8, 2022
Display on print

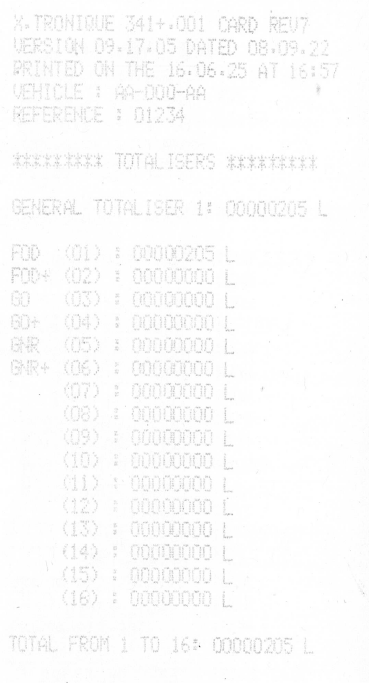

For devices equipped with a printer, the software version will be printed in the header of summaries, totalizers, parameters, and event logs.
To do this, go to the "Print" menu and print the desired item.
In the example above, the first 2 lines indicate that we are on software 341 of version 9.17.05 dating from September 8, 2022.
Display in maintenance mode
For the most recent applications, you can view the version in the Maintenance/Software/Application menu.
The display will be the same as when the application was launched.
